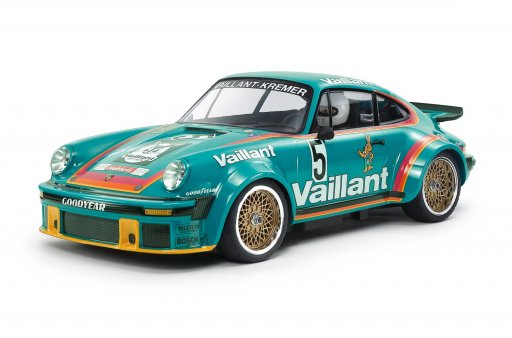

(TAM47524) Porsche 934 50e anniversaire

To celebrate the 50th anniversary of our first Porsche 934 model car, we are proud to announce the release of the Porsche 934 with a bespoke chassis whose engine is positioned longitudinally at the centre rear and drives the rear wheels, just like the real car. Collectors will be pleased to know that magnetic body mounts (requiring no holes in the body) are included for those who simply want to display the model! A unique numbered plate is also included to add special value to this kit.

• R/C kit to be assembled - 1/10 scale.

• This R/C kit replicates the Porsche 934 driven by Kremer Racing, which had its heyday in the 1976 DRM (German Motor Racing Championship) season.

• 4-wheel independent suspension uses a double wishbone configuration at the front and swingarm at the rear, with TRF shocks and stabilizer bars.

• Polycarbonate body used for the Porsche 934 30th Anniversary model. Paint the body with PS-54 Cobalt Green.

• Separate plastic parts replicate the rear spoiler, side mirrors and headlight housings.

• LEDs sold separately can be attached.

• Paint the rear spoiler and side mirrors with TS-102 Cobalt Green.

• Gearbox and adjustment links in anodized aluminum in dark titanium color.

• Updated stickers are included.

• Two-piece honeycomb wheels with plated metal hubcaps combined with narrow medium racing tyres (reference 51023) that offer excellent performance. Use wheel spacers (P/N 53646) when switching to narrow wheels at the front and wide wheels at the rear.

• High-end TRF shocks.

• Universal gimbals for efficient transmission.

• A numbered plate is also included to add special value to this kit.

• Comes with 1/10 scale passenger car cockpit kit (left-hand drive) reference 54298 with updated stickers.

Engine position:

• The engine is positioned in the center and lengthwise so that the chassis layout is similar to that of the real car. Power is transmitted as follows: A sprocket → Spur sprocket → Driveshaft → B sprocket → Spur sprocket → Sprocket differential. (The 66-tooth differential sprockets and all other sprockets are 04 modulus. The pinion differential is the one used on the TB-05 chassis.)

• Change the A and B sprockets to adjust the gear ratio.

• The parts around the gearbox are made of aluminum.

Rear Swingarms:

• Just like on the real car, the rear suspension uses swingarms. The swingarms

are molded from carbon fiber-reinforced plastic for superior rigidity.

• Fiberglass-reinforced

plastic underframe • Integrated main and rear underframe are molded from reinforced plasticFibreglass.

• The standard wheelbase of the kit is 230 mm (rear suspension with swingarms). The rear layout of the lower deck can be changed to change the wheelbase to 251mm (double wishbone rear suspension). A body sold separately is required for a wheelbase of 251 mm.

Real-car inspired design features:

• Engine guard shape similar to that of an exhaust

pipe • Patterns under the chassis

• Mounting bracket design similar to that of the cooling radiator (Intercooler).

• The cooling fan sold separately is located above the engine, just like the cooling system of the real car. Body Fasteners: Choose to secure the body using holes (rolling model) or magnets and metal parts (show model).

Dimensions:

• Length: 435 mm

• Width: 202 mm

• Height: 130 mm
